Renovation of Shanghai Relay Factory

ⓒ Qingyan Zhu



The Shanghai Electric Media Park is renovated from the former Shanghai Relay Factory, located in an industrial zone of Former Zhabei District of Shanghai. The preserved buildings include two four-story workshops and four one- or two-story affiliated buildings. The site is densely vegetated with tall trees, and the buildings are scattered among the greenery.



Following the urban planning guideline, the renovation retained the original layout and greenery of the campus, transforming it into a low-density high-green-ratio office and commercial plot, which is scarce in downtown Shanghai.



The architectural renovation, while maintaining an overall cohesive appearance and atmosphere, gives each of the six individual buildings unique character respectively through the mix and match of raw industrial materials, forming a harmonious yet distinct urban architectural cluster.



OFFICE BUILDINGS:

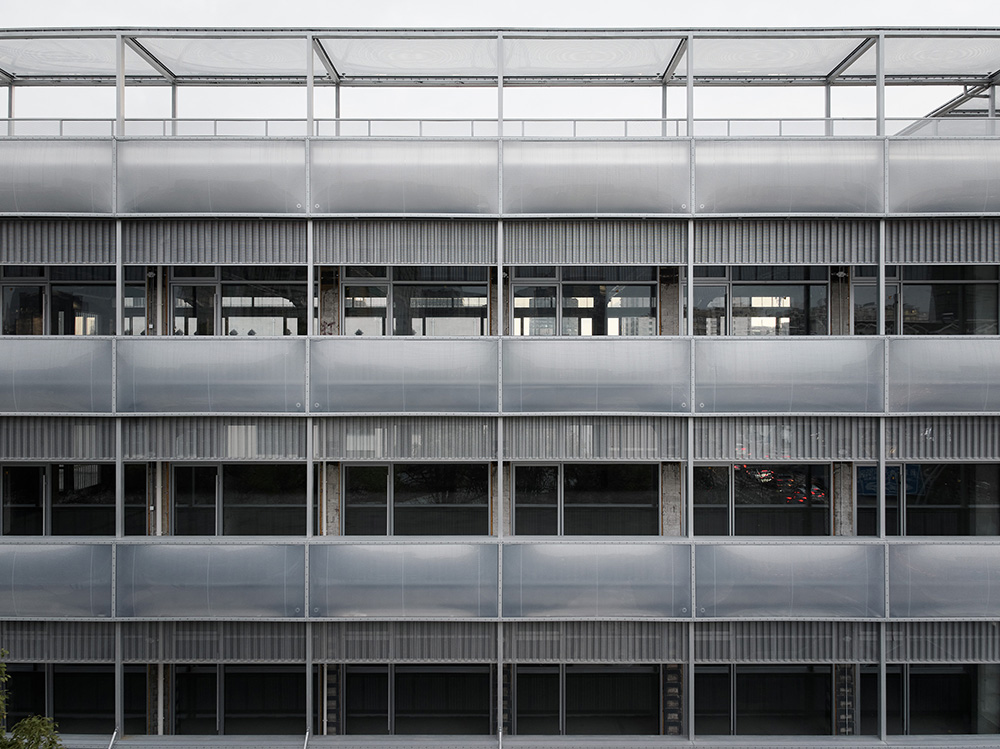

The two four-story workshops have been converted into office spaces. The one on the east emphasizes horizontality and plays with subtle texture. The façade uses grooved cement fiberboard, silver perforated long panel, and silver aluminum panels in varying orientations. The north façade features large glass windows overlooking the garden and solid aluminum windows concealing the columns. The rigid framework of industrial building is intentionally concealed behind the meticulously planned patchwork composition.



The offices on the west retains more industrial characteristics of the original buildings. A steel staircase is inserted into the existing framework on the west facade to create a distinctive image facing the street. The steel staircase extends northwards, becoming a public circulation on the north touching the ground floor. The north façade and roof corridor use inflatable ETFE membrane as the rail and roof panels, to create a sci-fi atmosphere. The air cushions become lighting elements at night as a signature image facing the city.



COMMERCIAL BUILDINGS:



The long strip of single-story shops along the street uses undulating pitched roofs to maintained the former building height along the walkway. The volume transits to flat roofs on the side facing the inner pedestrian street. The façade features silver perforated panels and expanded mesh.



At the eastern end of the strip is a tall metal box, repurposed from the original power distribution room. It retains the oversized height and rough concrete beams of the industrial building. Corrugated galvanized steel panels rise towards the plaza, resembling an opened gift box.



Facing the small plaza is a café with a light steel structure. The irregular folded paper-like roof extends deeply and lifts towards all sides, inviting guests to sit. The facade can be fully opened, blending the interior and exterior.



The original two-story dormitory has an L-shaped layout. Surrounded by dawn redwoods, it encloses the original garden, creating a quiet high-end dining area. Each private room corresponds to a unit with a sawtooth roof, with sunlight and tree shadows cast inside through high clerestory windows.



The new park seeks to explore the possibility of a thoughtful and cost-cautious renovation, achieving spatial and visual complexity through the juxtaposition and transformation of proportions and materials to consciously avoid boring reposition or over commercialized.



ⓒ Qingyan Zhu

ⓒ Qingyan Zhu

ⓒ Qingyan Zhu

ⓒ Qingyan Zhu

ⓒ Qingyan Zhu

ⓒ Qingyan Zhu

ⓒ Qingyan Zhu

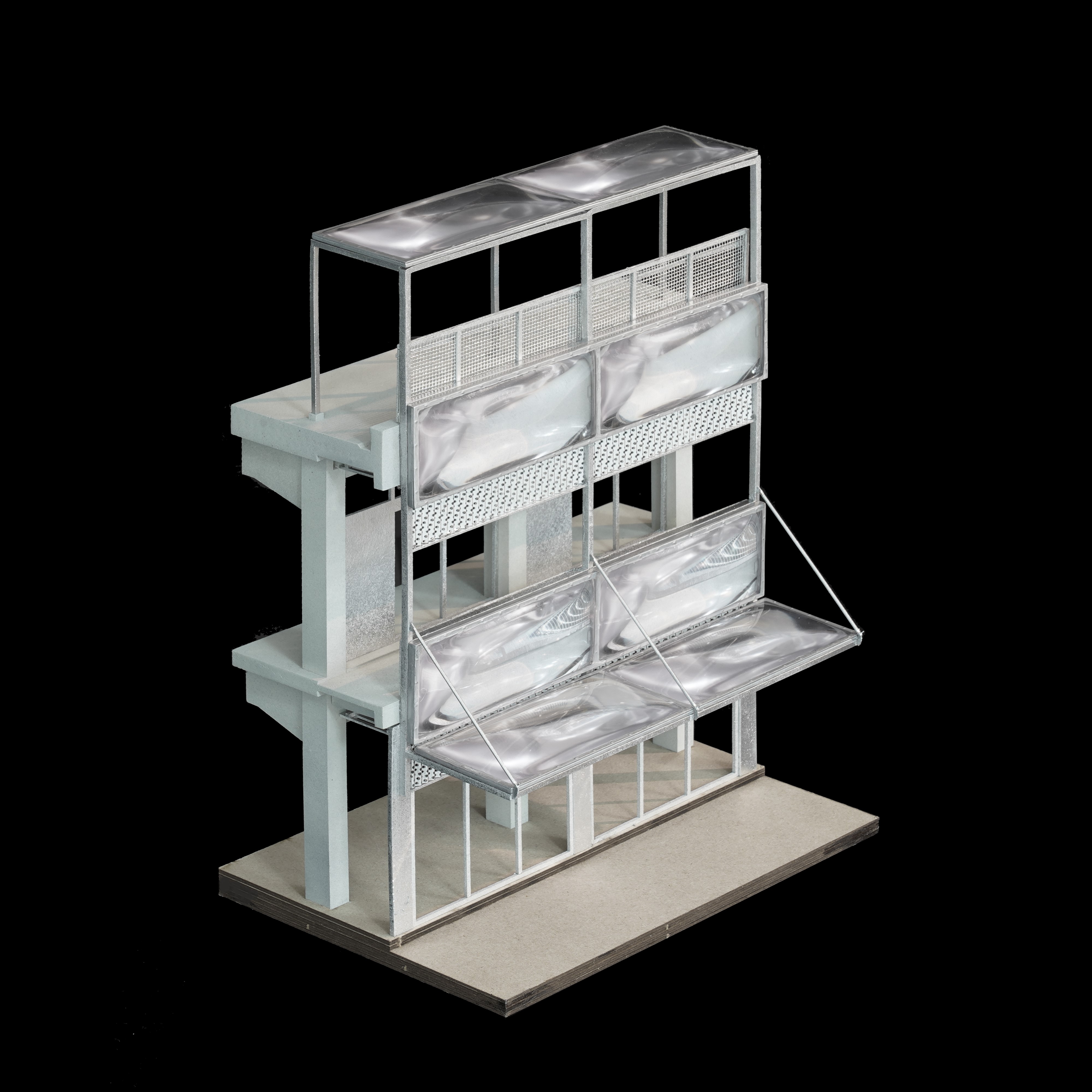

facade detail model

axonometric

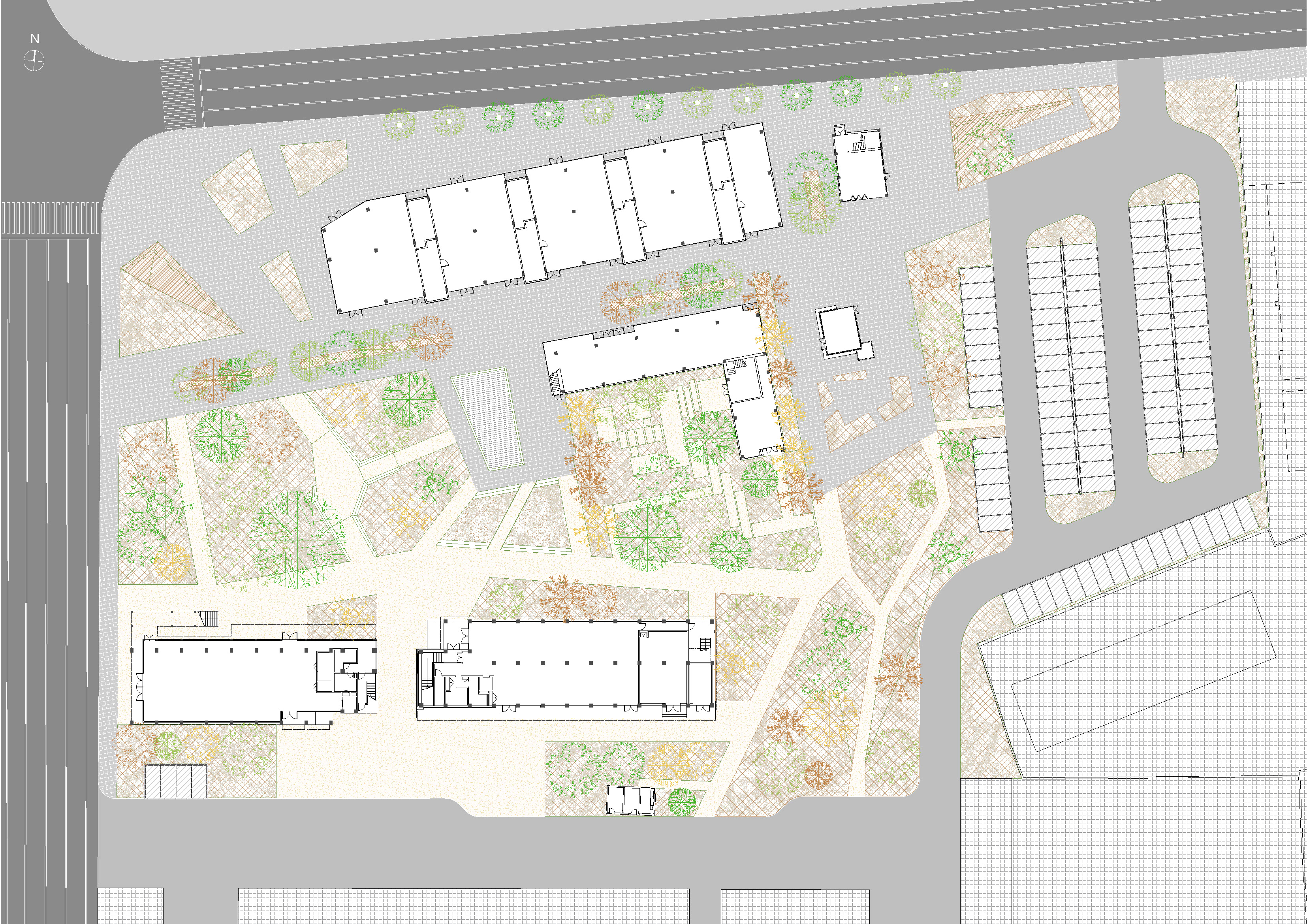

Master plan

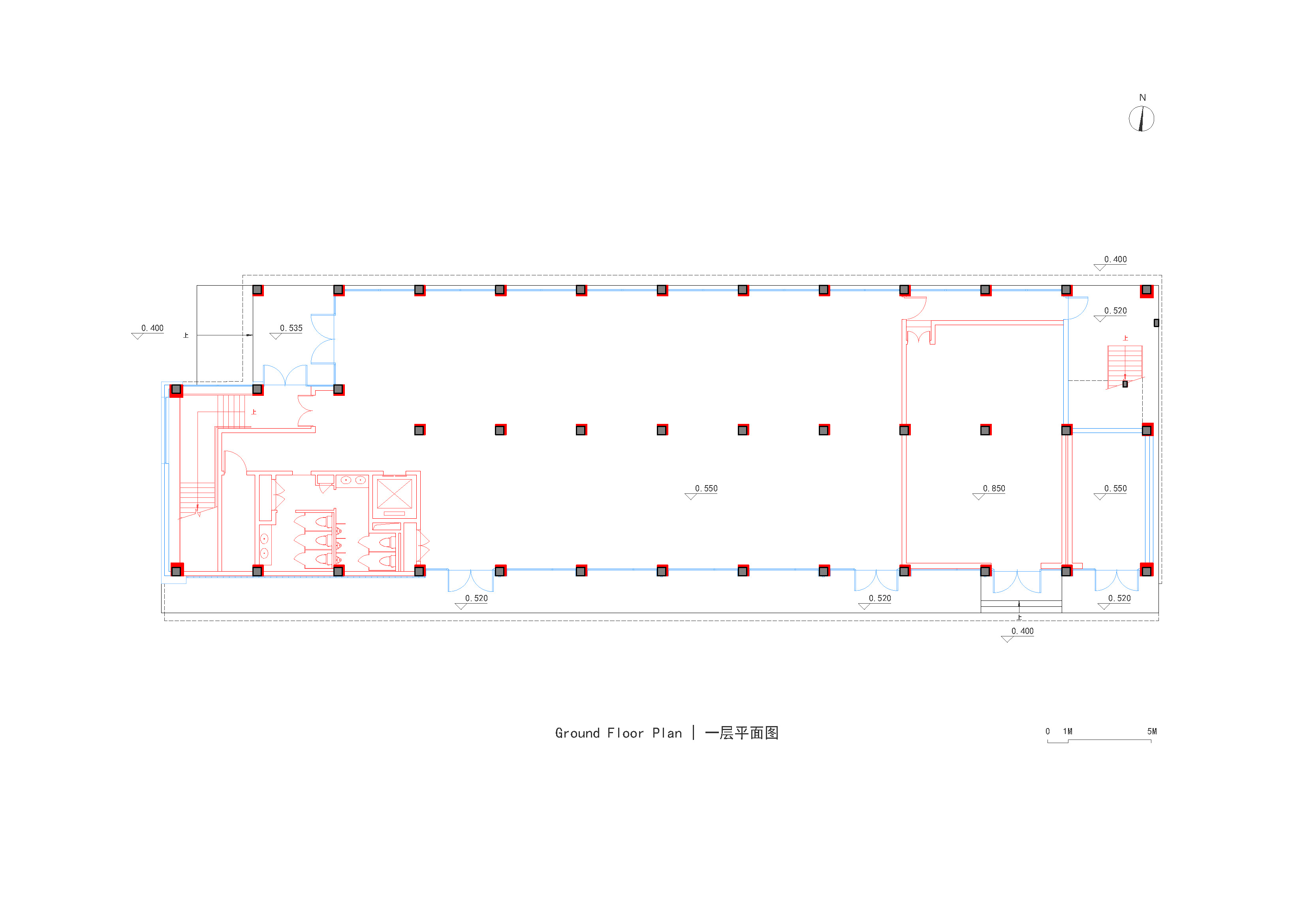

Workshop A ground floor plan

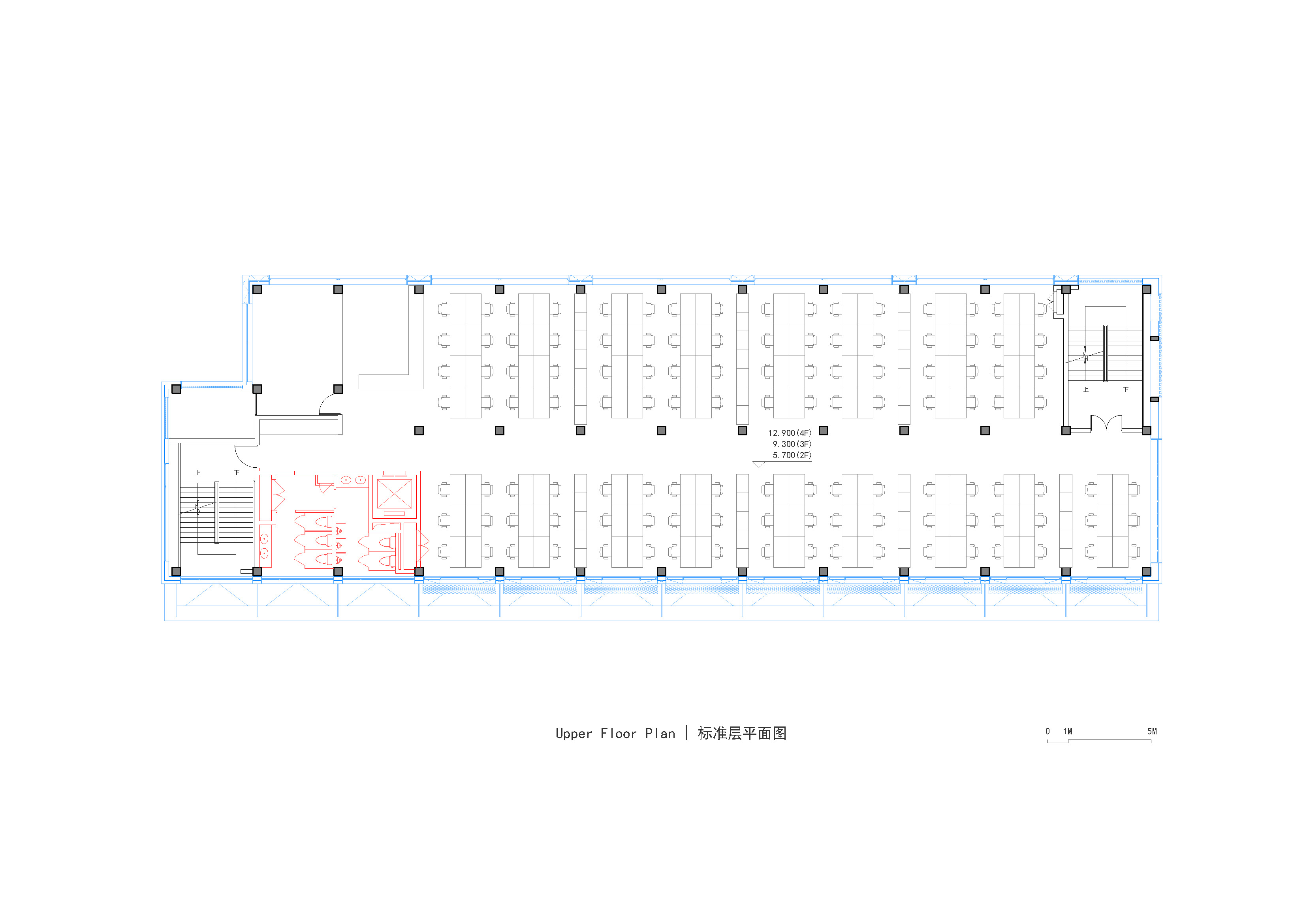

Workshop A upper floor plan

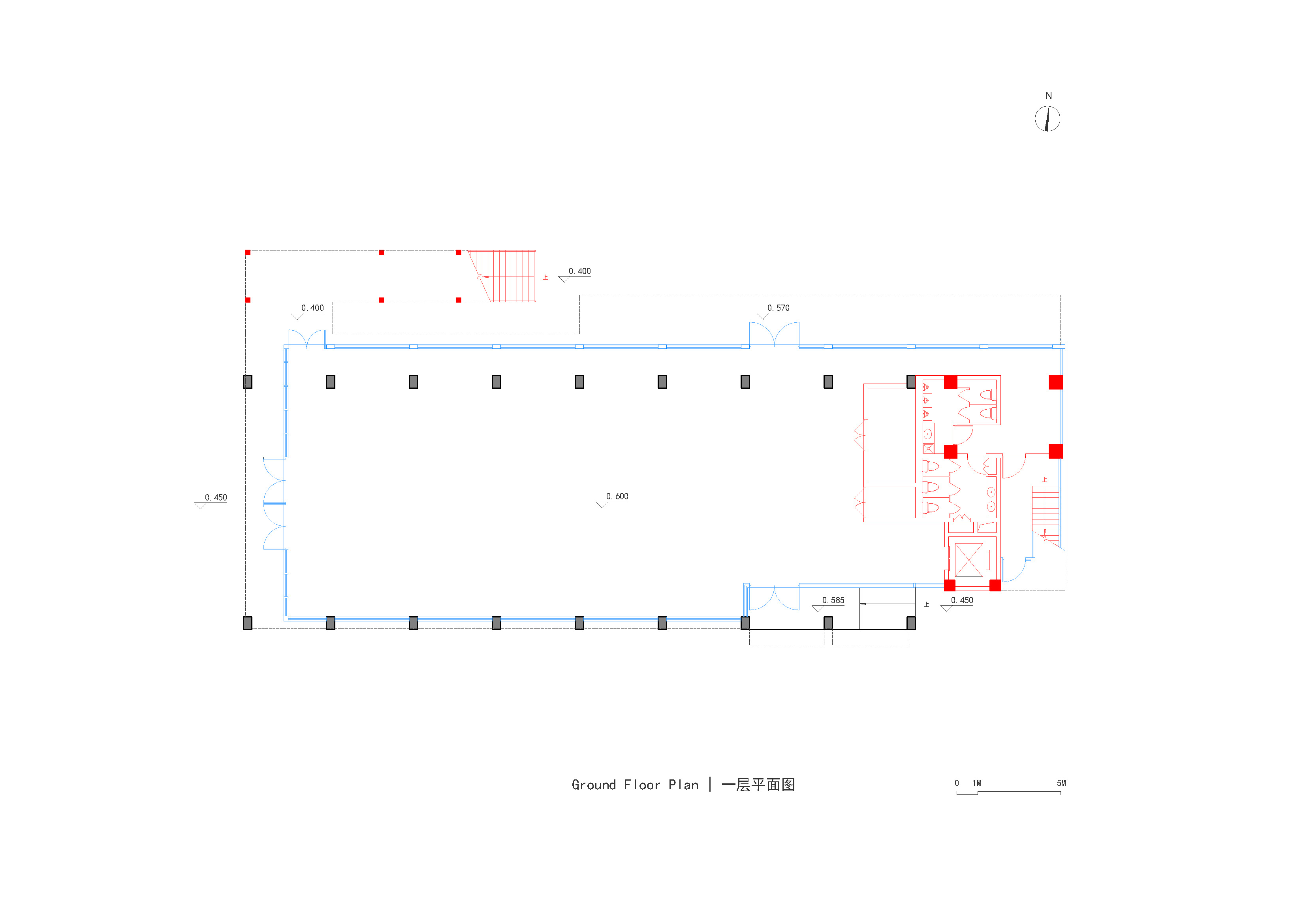

Workshop B ground floor plan
